Cell 800
- Cell ID 800
- Cell line CHO FT rKv3.4
- Temperature 25 °C
[Metadata file not available]
- Notes Variable response of Kv3.4 in all four channels. Cell 4 changed over time.
- Stable recording
- Active cell
- Repetition sequence (stimulus)
- VRest_rep01 #16
- Activation_rep01 #2
- Ramp_rep01 #11
- Deactivation_rep01 #7
- AP_rep01 #15
- Inactivation_rep01 #9
- Activation_rep02 #2
- Ramp_rep02 #11
- Deactivation_rep02 #7
- AP_rep02 #15
- Inactivation_rep02 #9
- Activation_rep03 #2
- Ramp_rep03 #11
- Deactivation_rep03 #7
- AP_rep03 #15
- Inactivation_rep03 #9
- Activation_rep04 #2
- Ramp_rep04 #11
- Deactivation_rep04 #7
- AP_rep04 #15
- Inactivation_rep04 #9
- Recovery_rep01 #19

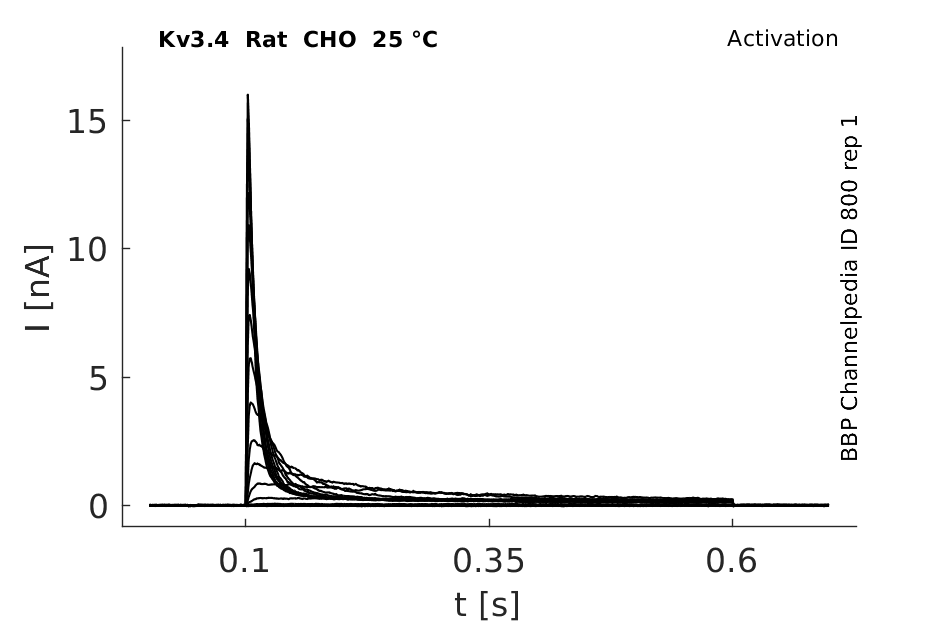

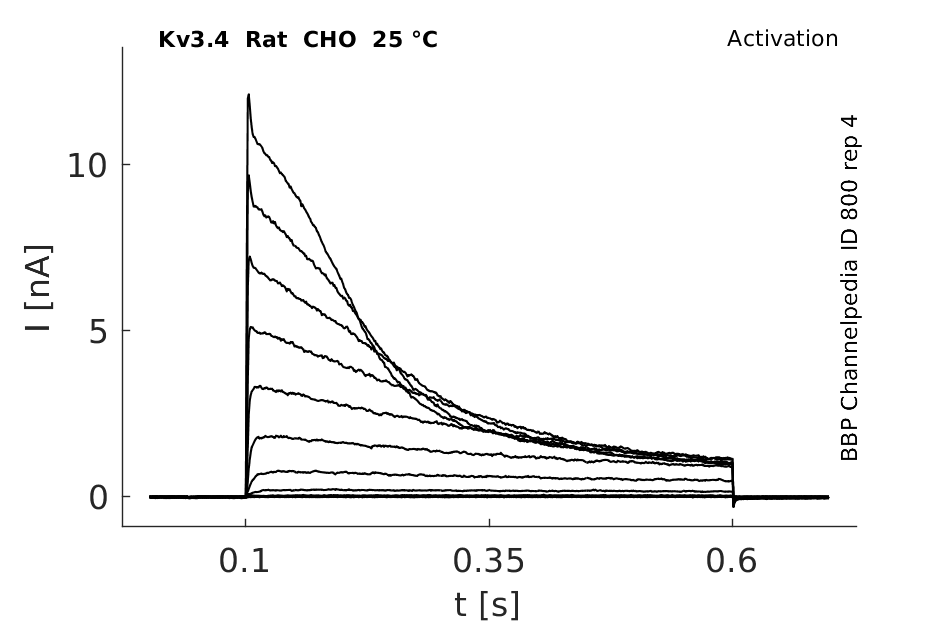

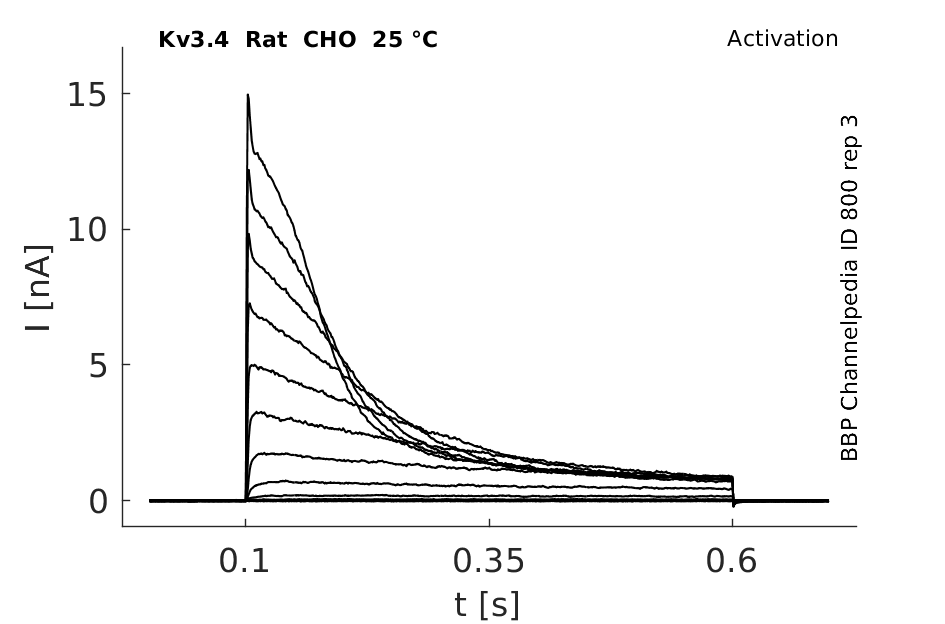

Activation
Repetition n° 1
Repetition n° 2
Repetition n° 3
Repetition n° 4
Stimulus #Activation (10 kHz)

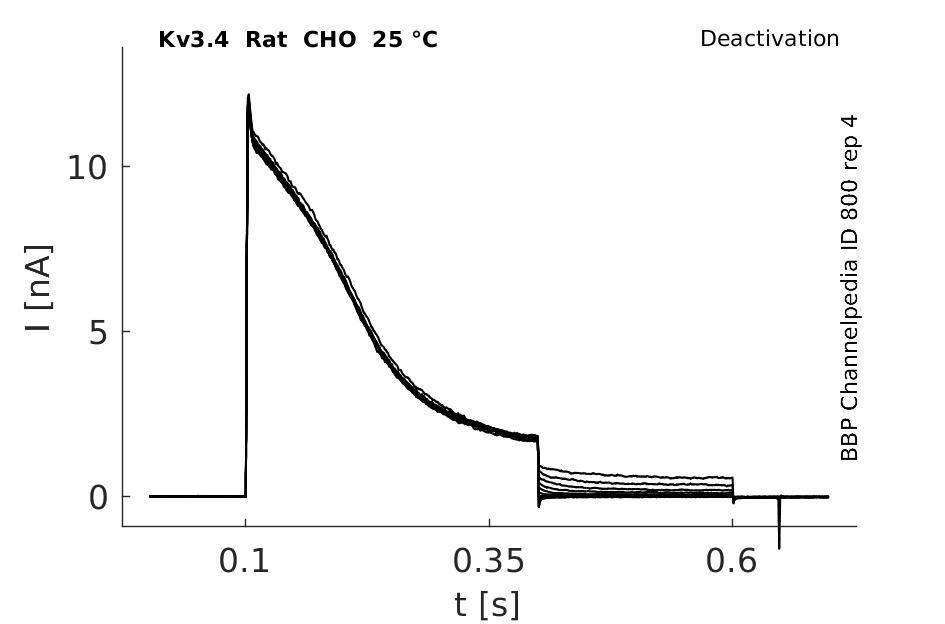

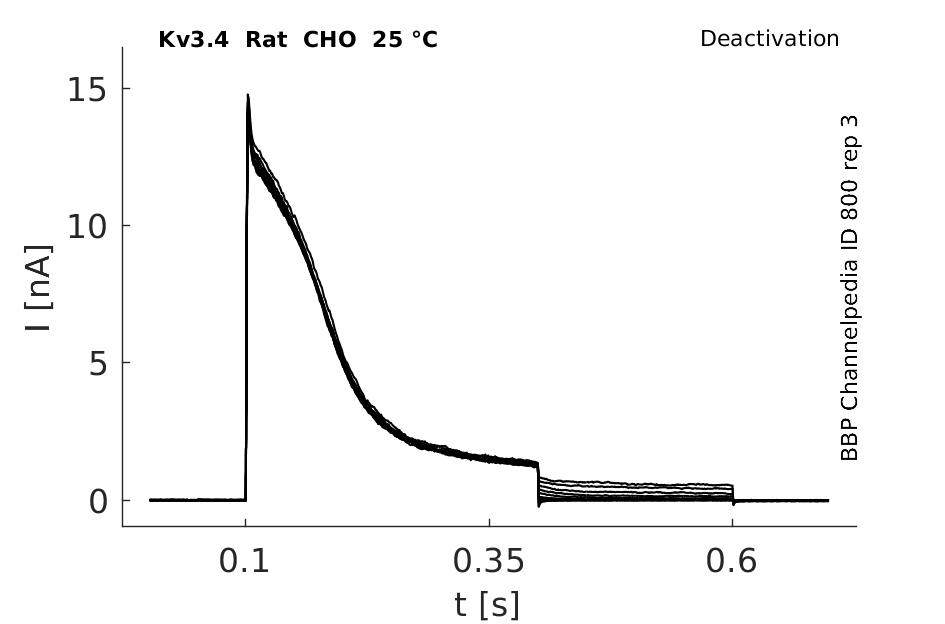

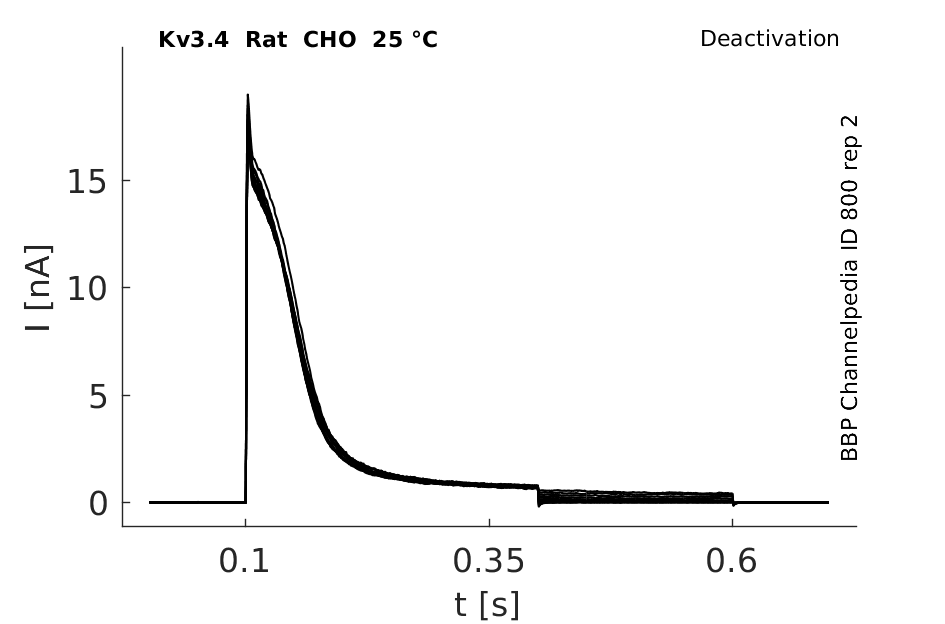

Deactivation
Repetition n° 1
Repetition n° 2
Repetition n° 3
Repetition n° 4
Stimulus #Deactivation (10 kHz)

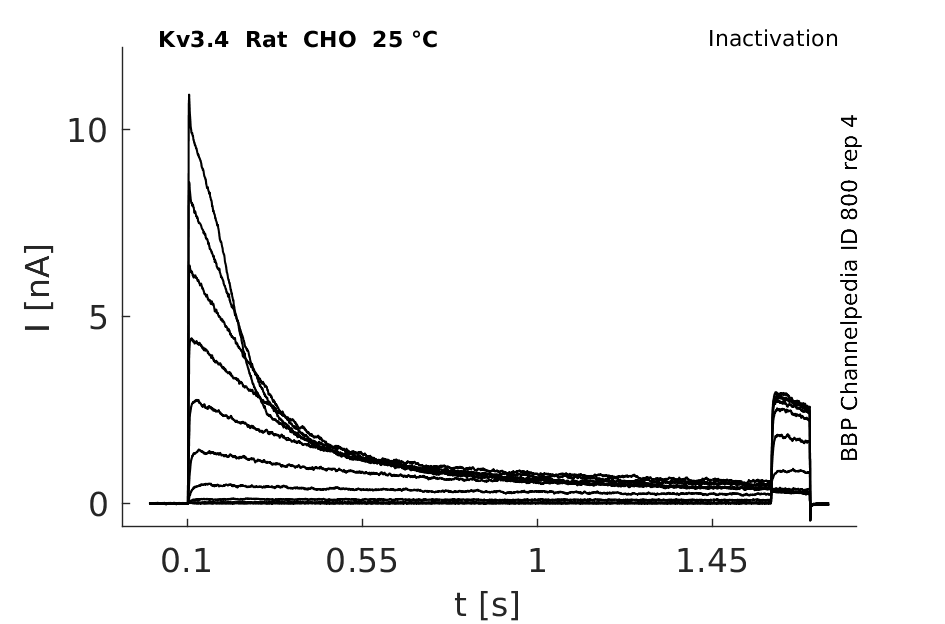

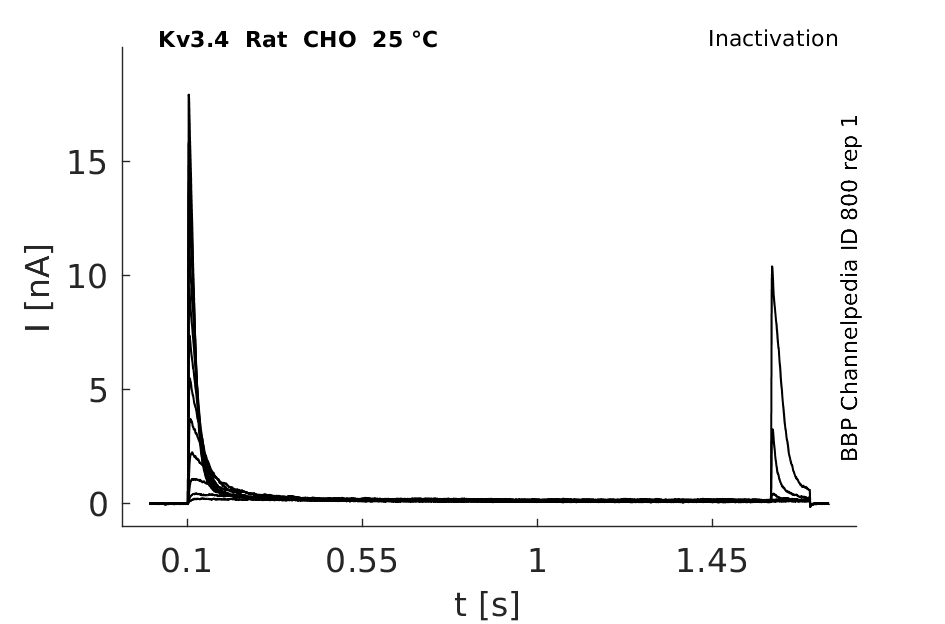

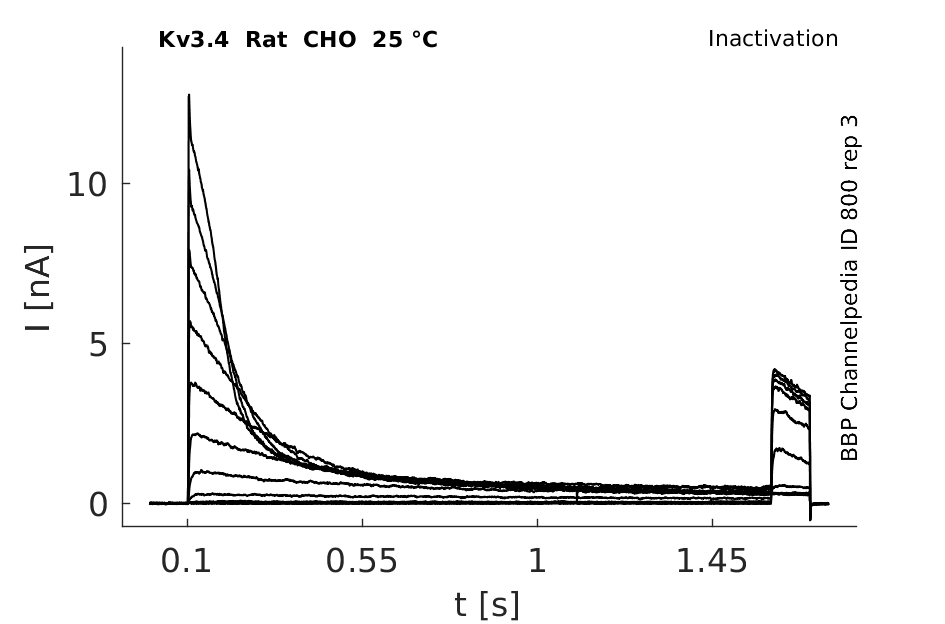

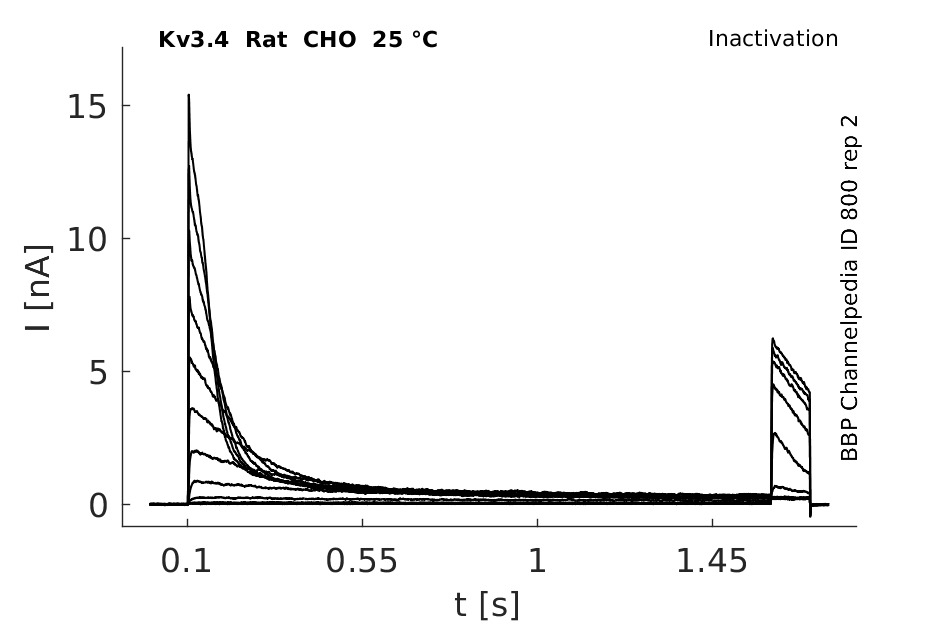

Inactivation
Repetition n° 1
Repetition n° 2
Repetition n° 3
Repetition n° 4
Stimulus #Inactivation (10 kHz)

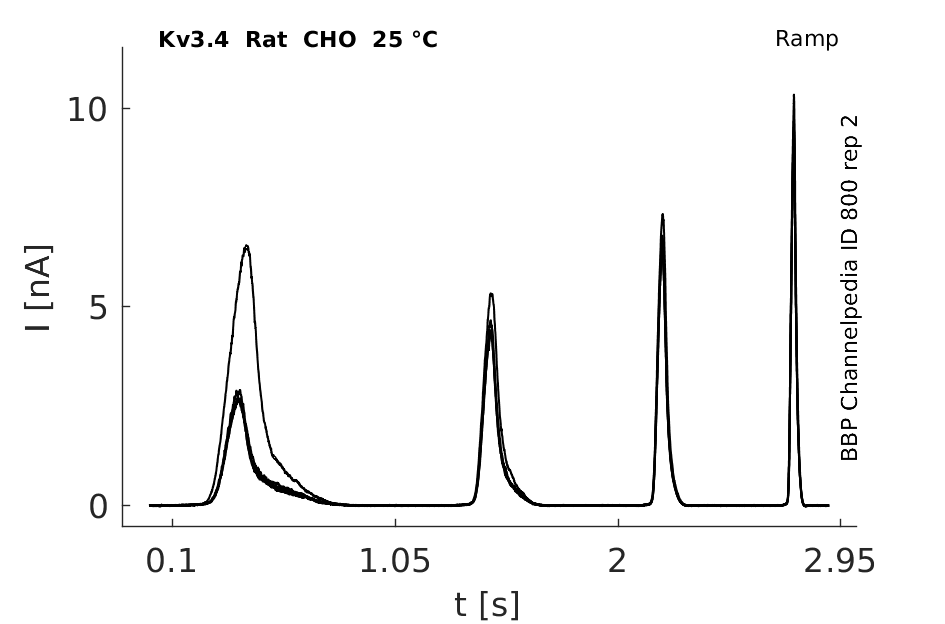

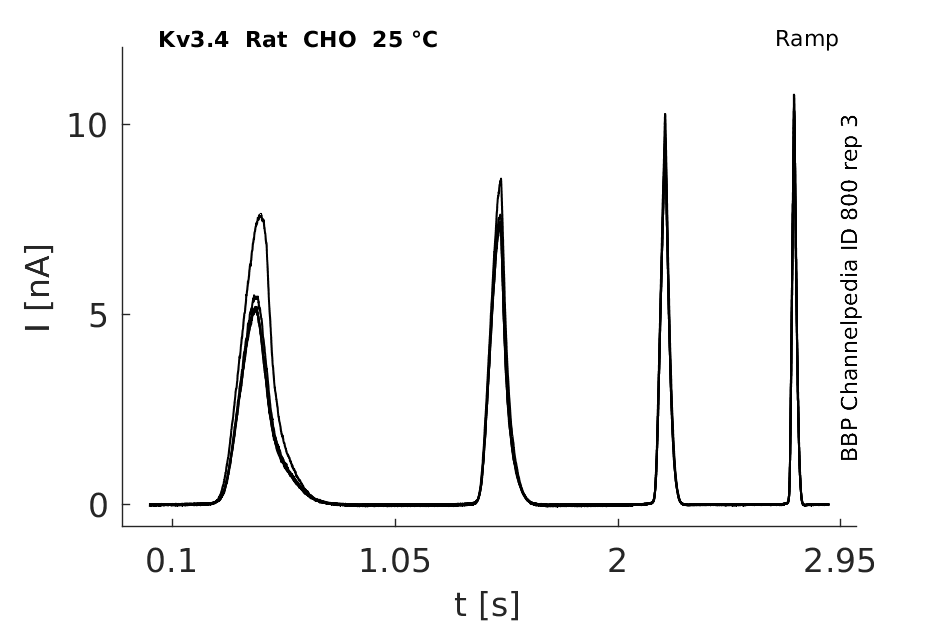

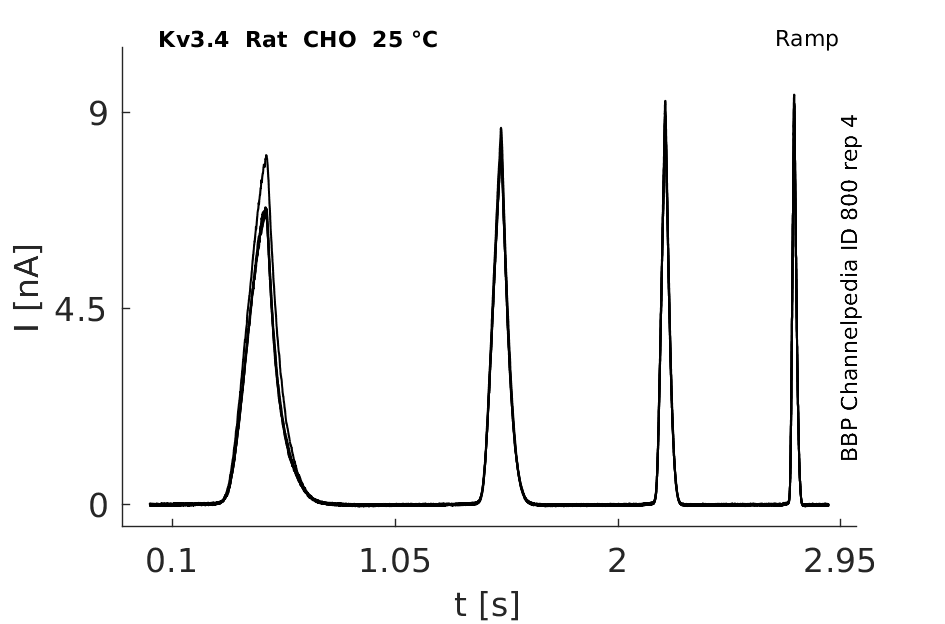

Ramp
Repetition n° 1
Repetition n° 2
Repetition n° 3
Repetition n° 4
Stimulus #Ramp (10 kHz)

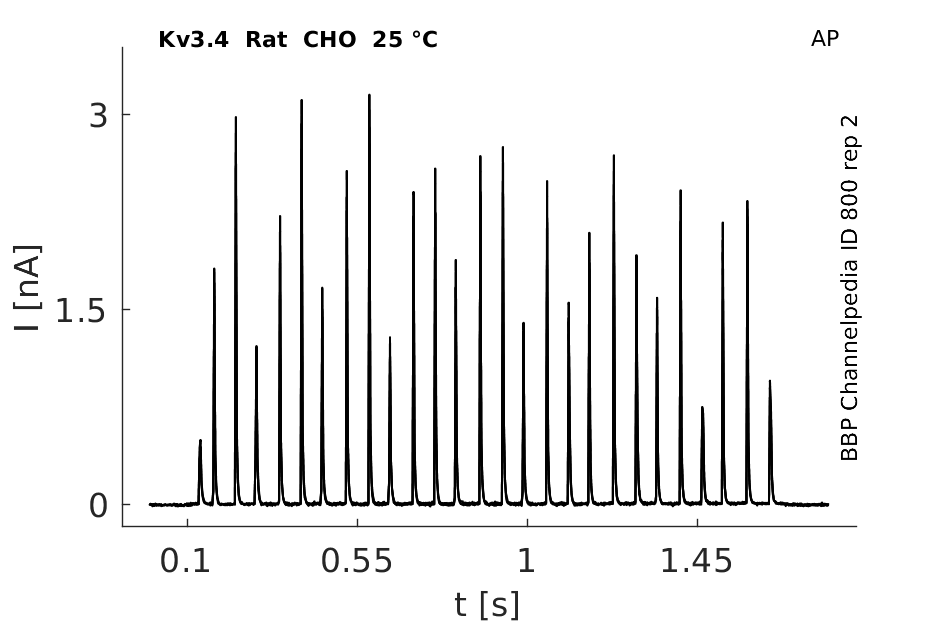

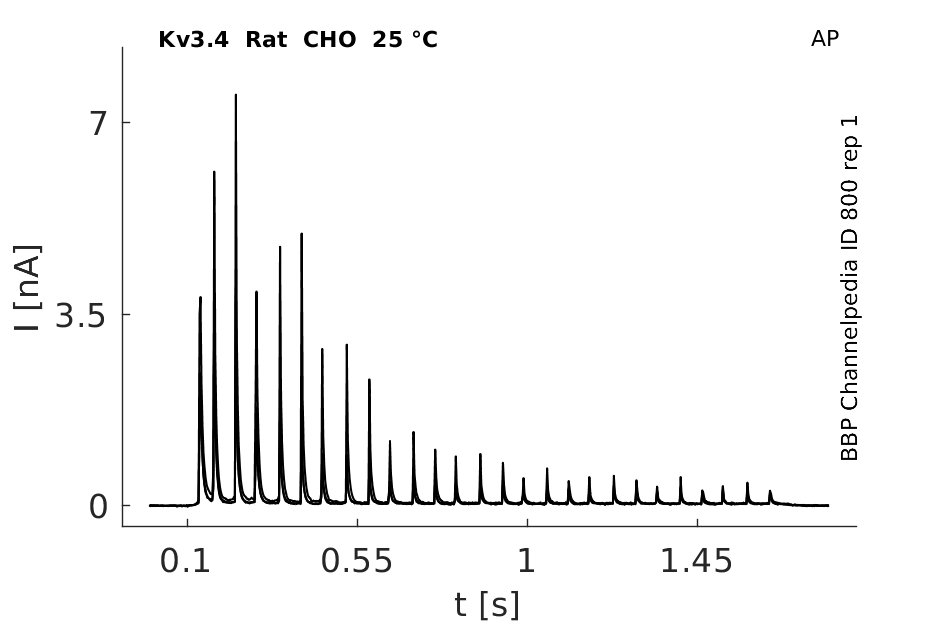

AP
Repetition n° 1
Repetition n° 2
Repetition n° 3
Repetition n° 4
Stimulus #AP (4 kHz)

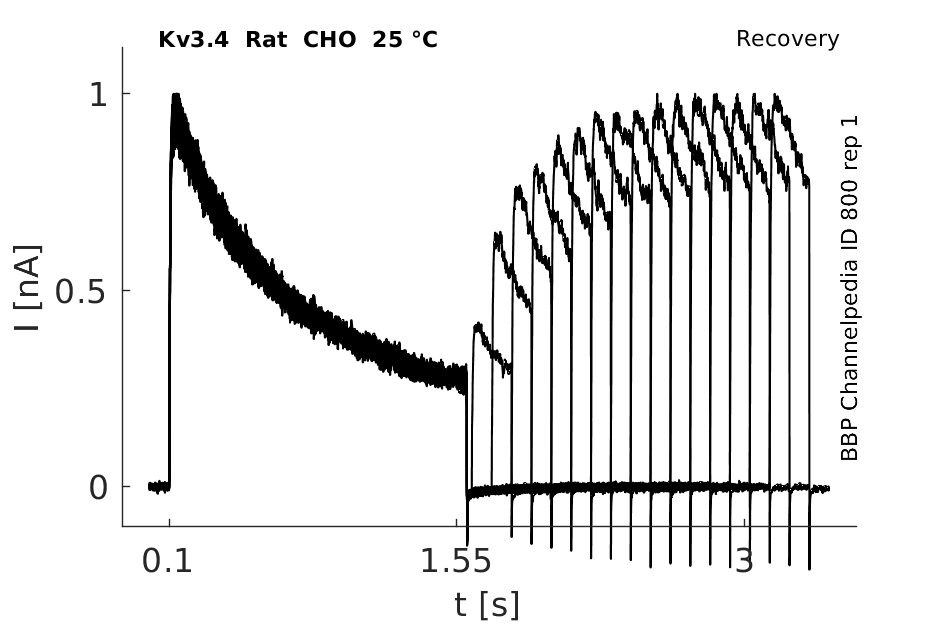

Recovery
Repetition n° 1
Stimulus #Recovery (10 kHz)
